The Anatomical Relationship of Inferior Thyroid Artery and Recurrent Laryngeal Nerve: A Review of the Literature and Its Clinical Importance

The anatomical relationship between the recurrent laryngeal nerve (RLN) and the inferior thyroid artery (ITA) is volatile (Fig. 1). The ITA usually arises from the thyrocervical trunk and supplies the thyroid gland, while the RLN, which is a mixed nerve, is one of the branches of the vagus nerve. The RLN most commonly runs anterior to the ITA on the right side and posterior to the ITA on the left side. Sporadically, the RLN passes between the branches of the ITA.

Click for large image

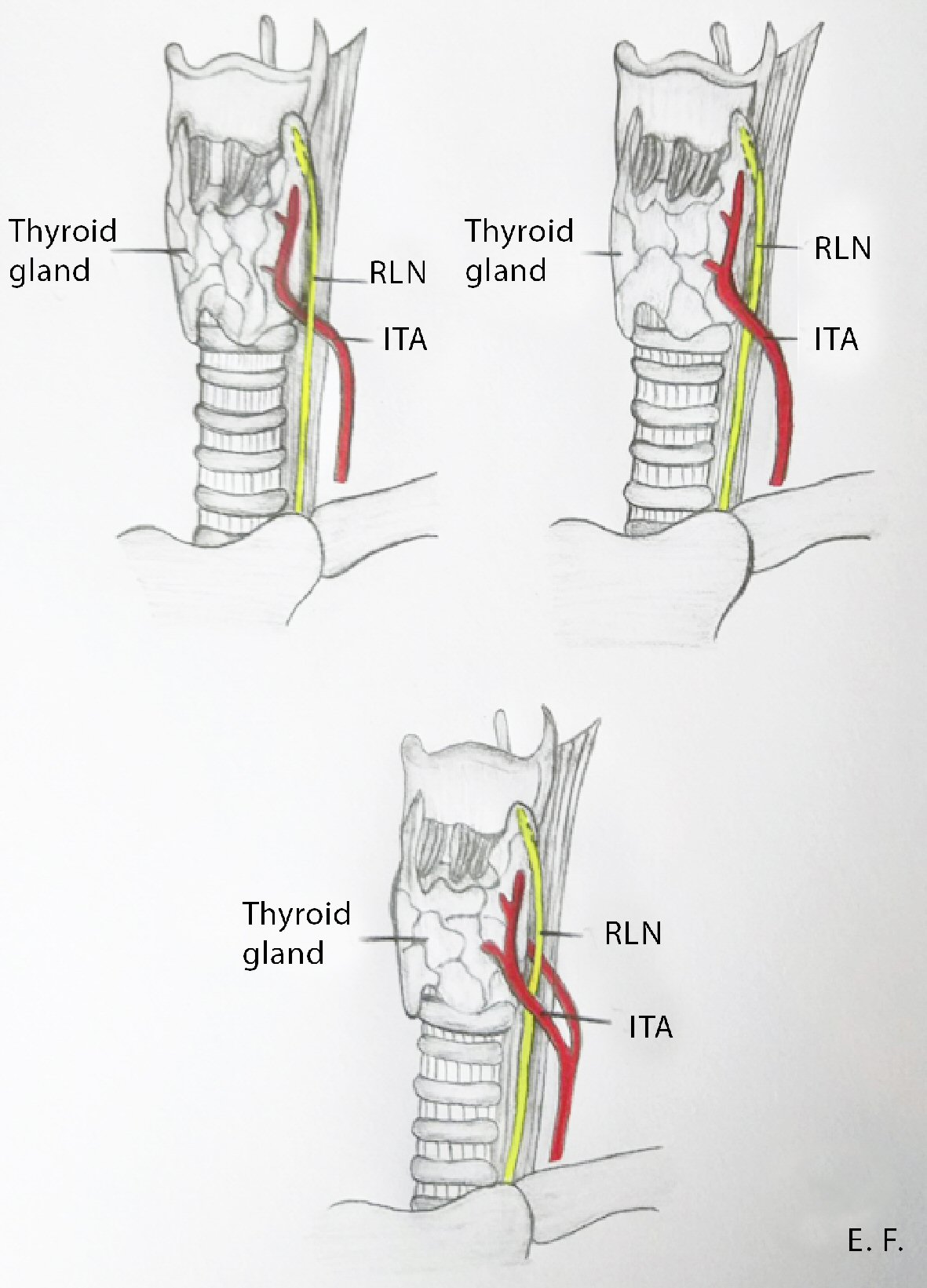

Figure 1. The anatomical relationships between the RLN and the ITA. RLN: recurrent laryngeal nerve; ITA: inferior thyroid artery.

During thyroidectomy, the RLN is at risk of iatrogenic injury. This is one of the major complications of thyroidectomy surgery, occurring in 2-5% of patients without nerve variations, and it results in voice and swallowing problems. To decrease these complications, a precise surgical technique is necessary to identify the ITA, which is the landmark for recognizing the RLN. The relationship between the artery and the nerve was studied during the past century, and several classification systems were developed. The aim of our study is to provide an evidence-based assessment of the anatomical relationship between the ITA and the RLN to reduce the incidence of iatrogenic injuries and postoperative complications of thyroid surgery.

An extensive research was performed of the following databases, which met the inclusion criteria for the analysis: PubMed, Science Direct, EMBASE, and Web of Science. The search terms used were “RLN”, “ITA”, “thyroid surgery”, “complications”, “anatomy”, and “variations”. For the analysis, we included articles published in English from 2005 to 2019. No review protocol existed. Case reports, letters to the editors, and conference abstracts were excluded from the study, and only original articles were used. The analysis was performed according to the preferred reporting items for systemic reviews and meta-analyses (PRISMA) guidelines and conducted independently by two separate reviewers, who were responsible for the data extraction. The data included the study, type of patients (cadavers or perioperative finding), and number of RLNs and their relationship to the ITA. Further statistical consultation was conducted if there was any disparity regarding the data.

The random effects model MetaXL 5.3 (freely available software for meta-analysis in Microsoft Excel) was used to examine the heterogeneity of the pooled data. The pooled prevalence and Cochran’s Q test were estimated to identify heterogeneity among the studies. If the confidence intervals (CIs) of the pooled prevalence estimate overlapped poorly, this was strong evidence of statistical heterogeneity. The I² statistics (Higgins statistics) were calculated to describe the percentage of the variability in effect estimates that was due to heterogeneity rather than sampling error.

An initial search of the databases identified a total of 578 records; 511 articles did not meet the inclusion criteria, and 38 were duplicates. Twenty-nine full-text articles were assessed for eligibility. Of these, 13 articles were excluded due to incomplete data and statistical issues, and finally, 16 articles were used in the qualitative and quantitative analysis (Fig. 2). A total of 12 studies were performed on cadavers, and the other four were from intraoperative findings (Table 1 [1-16]).

Click for large image

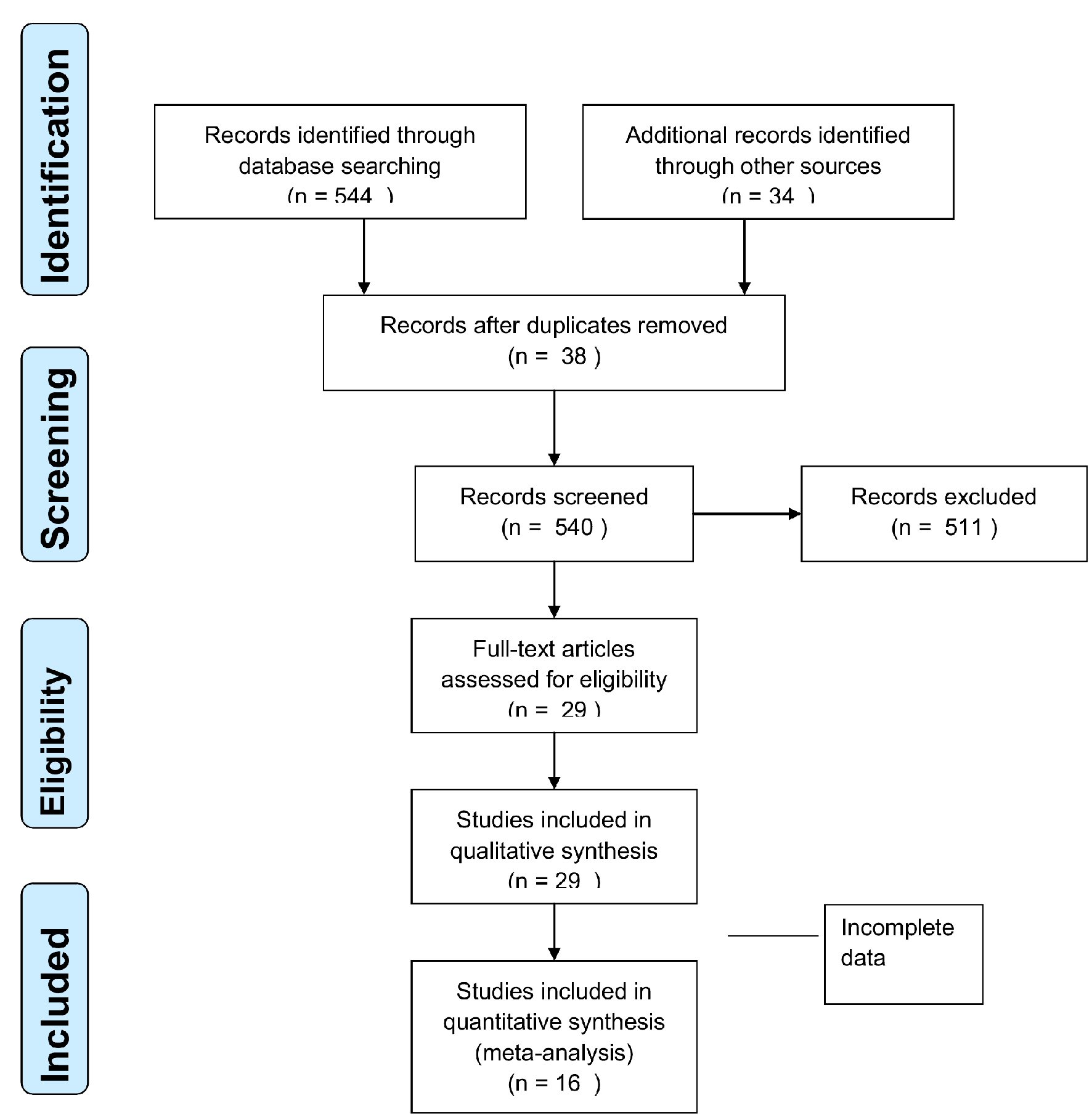

Figure 2. Flow diagram according to PRISMA guidelines. PRISMA: the preferred reporting items for systemic reviews and meta-analyses.

Click to view

Table 1. The Included Studies and the Prevalence of Each Type of RLN to ITA Relationship

A total of 4,198 RLNs (2,099 patients) were assessed for the statistical analysis. The most common type of RLN was posterior to the ITA, with a prevalence estimate of 52.08% (95% CI: 46.5 - 57.6), while the second most common was anterior to the ITA, with a pooled prevalence of 23.91% (95% CI: 16.8 - 31.7). The least common type was between the branches of the ITA, with a prevalence estimate of 18.94% (95% CI: 13.3 - 25.6). In addition, there were differences between the left and right sides, with the posterior type being the most common, occurring in 35.73% (95% CI: 32.57 - 38.95) of the nerves on the left side and 20.78% (95% CI: 14.2 - 28.1) of those on the right one (Table 2). The data from the included studies were not statistically sufficient in order to conclude any sex or race related difference in the local anatomy of ITA and the RLN.

Click to view

Table 2. The Number of Studies Included, the Prevalence Estimate and the Statistical Heterogeneity According to Higgins I2 Statistics

In all the above cases, according to the Higgins I² statistics, the heterogeneity was quite high, except in the case of the relationship of the RLN running posterior to the ITA at the left side. Despite the relatively large sample size more studies should be conducted to achieve more reliable conclusions (Figs. 3 - 6).

Click for large image

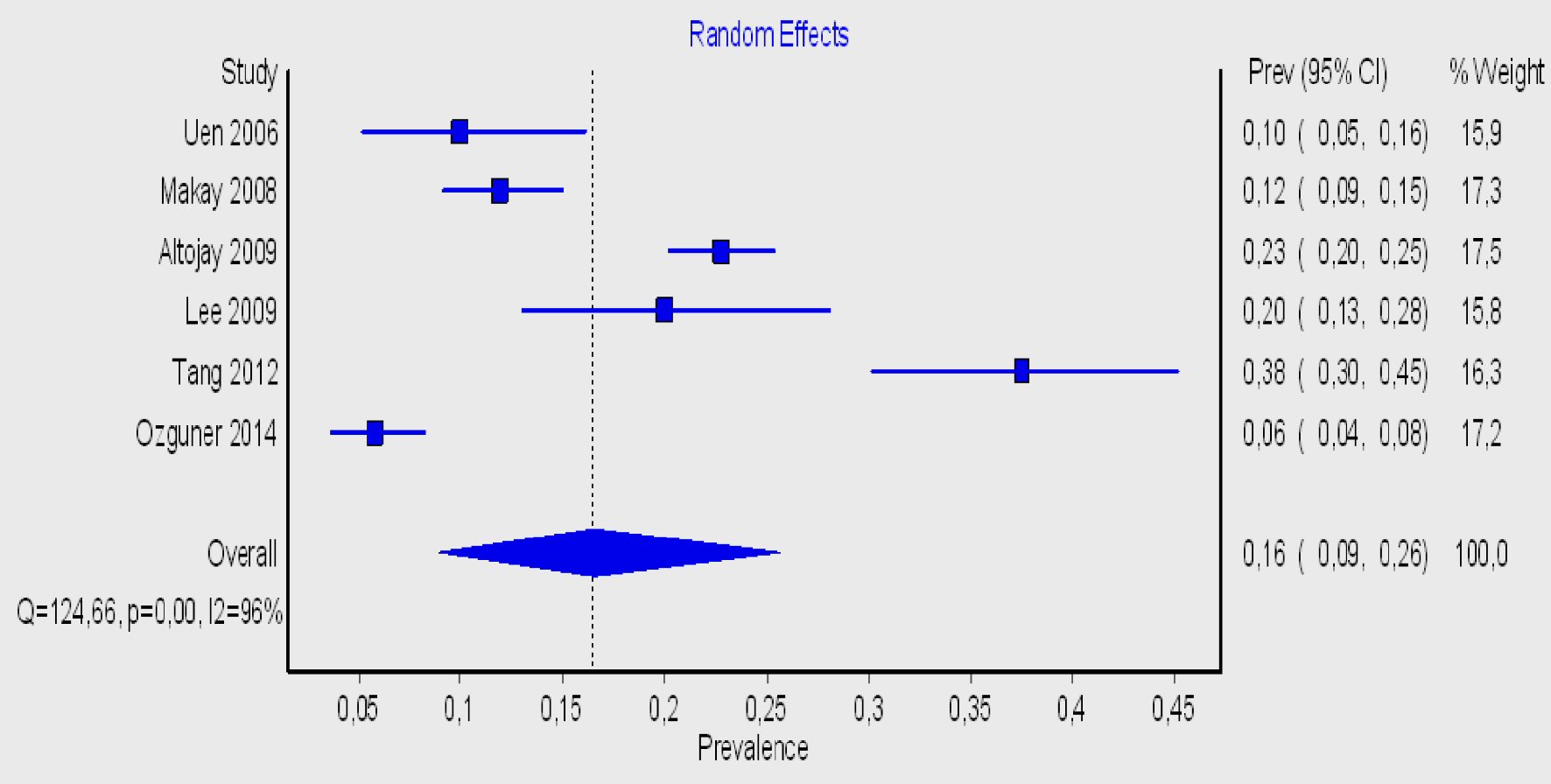

Figure 3. Forest plot for the right-sided prevalence of the RLN anterior to ITA. RLN: recurrent laryngeal nerve; ITA: inferior thyroid artery.

Click for large image

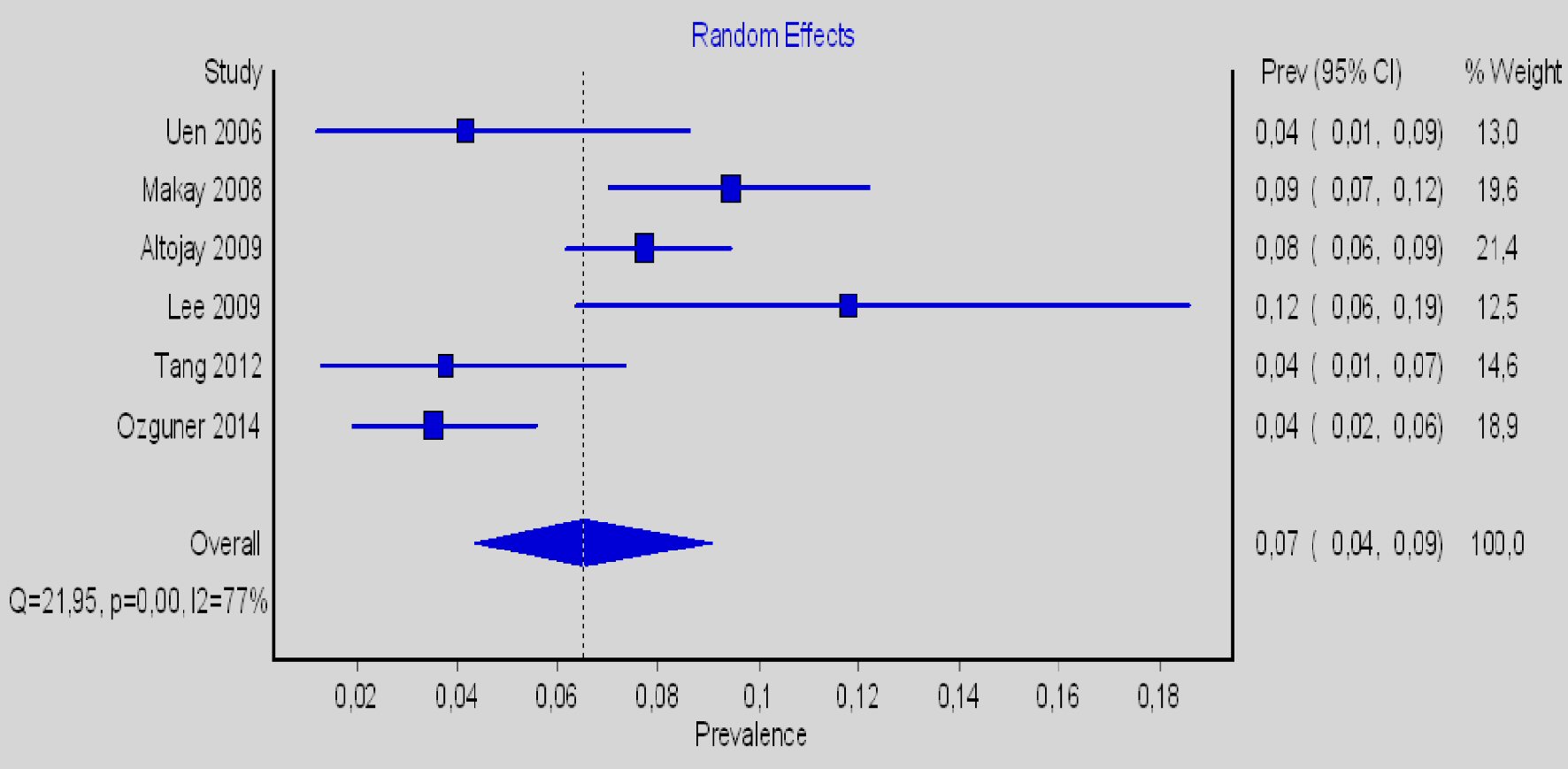

Figure 4. Forest plot for the left-sided prevalence of the RLN anterior to ITA. RLN: recurrent laryngeal nerve; ITA: inferior thyroid artery.

Click for large image

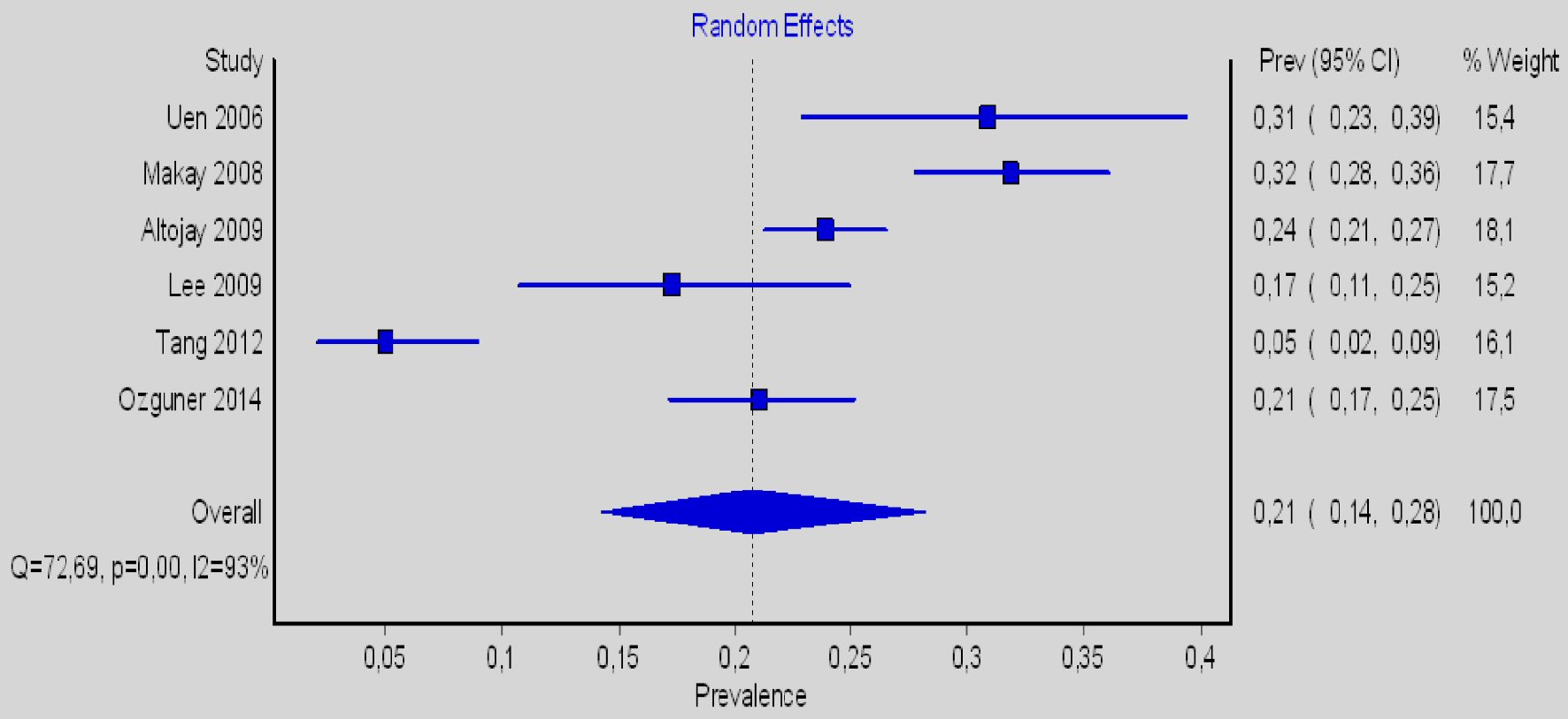

Figure 5. Forest plot for the right-sided prevalence of the RLN posterior to ITA. RLN: recurrent laryngeal nerve; ITA: inferior thyroid artery.

Click for large image

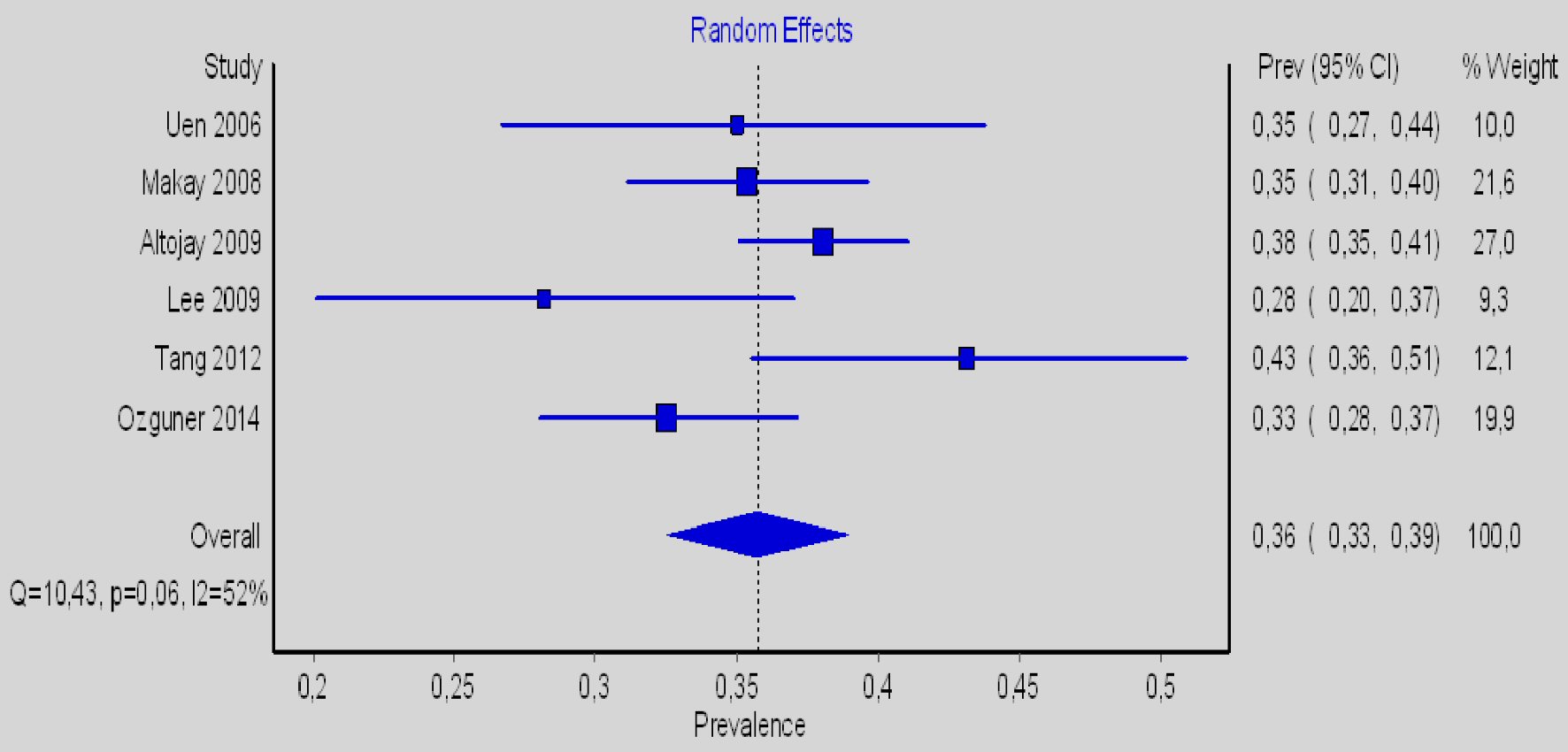

Figure 6. Forest plot for the left-sided prevalence of the RLN posterior to ITA. RLN: recurrent laryngeal nerve; ITA: inferior thyroid artery.

The first well-described enlargement of the thyroid gland goes back to the ages of the Roman Empire; later, a detailed explanation of the thyroid anatomy was given in the 16th century AD by Leonardo da Vinci [17]. Surgery for thyroid diseases has evolved over the years; however, despite the vast decrease in morbidity, this is still an issue, and injury of the RLN can have a detrimental impact on patients’ quality of life and cause psychosocial distress [18].

According to several studies, injury of RLN during thyroidectomy varies from 1.5% to 14% [19-21]. Recovery takes place within 1 year in more than 80% of cases [22]. The most common cause of litigation related to performed surgical operations worldwide is iatrogenic vocal cord palsy [23]. The main mechanisms of damaging the RLN during thyroidectomy are pressure, laceration, thermal damage, division, ligation, ischemia, and manipulation [24-26]. Additional lack of surgical plan during dissection, caused by fibrosis and scar tissue resulting from previous interventions, is a well-known reason for iatrogenic damage of the RLN. The result is that 12.5% of patients suffer from temporary vocal cord paralysis, and unfortunately, 3.8% will experience permanent paralysis [27].

Fowler [28], and later, Skandalakis et al [29] concluded that injury to the RLN is more common when the nerve lies anterior to or between the ITA. Surgeons should also take care when performing operations of the thyroid on the right side because of the predominance of the anterior configuration [30].

There are studies suggesting that intraoperative nerve monitoring (IONM) has not proven more effective than direct nerve visualization has [31, 32]. However, when there is an anatomical variant, reoperation of the thyroid gland or obscured pathology IONM should be used to prevent iatrogenic injury of the RLN [33].

The purpose of our study is to highlight the variety in the normal anatomical course of RLNs during thyroidectomy to help surgeons perform safer operations and carry out accurate interventions to avoid lifelong complications in patients. In our study, after reviewing a total of 578 publications according to the PRISMA guidelines, we used 16 articles for both quantitative and qualitative analysis. After assessing 2,099 patients, we concluded that the RLN was usually running posterior to the ITA, with a prevalence of 52.08%. In addition, there were differences between the left and right sides of the thyroid gland, with the posterior type being more common on the left, representing an occurrence of 35.73%.

Despite the large sample of patients included in our study and the statistical methods, which are the strength of our analysis, the heterogeneity was quite high according to the Higgins statistics. One explanation for this is the anatomical differences among races regarding the embryological development of the nervous and vascular systems. Another issue was that most of the studies used in the analysis were performed on cadavers and not during an operation. To exclude safe results with low statistical bias, it is necessary to conduct larger studies from the same continent in which surgery is performed on living subjects.

In conclusion, the relationship between the ITA and the RLN is highly variable. Thus, surgeons should always keep in mind the anatomical relationship of the RLN to the ITA and identify any abnormality to reduce morbidity and iatrogenic injury during thyroid surgery.
